INNERCOOLED MODELS SHIP 5/15

Dual Injector Runners/rails are made to order. allow 3-4week lead time

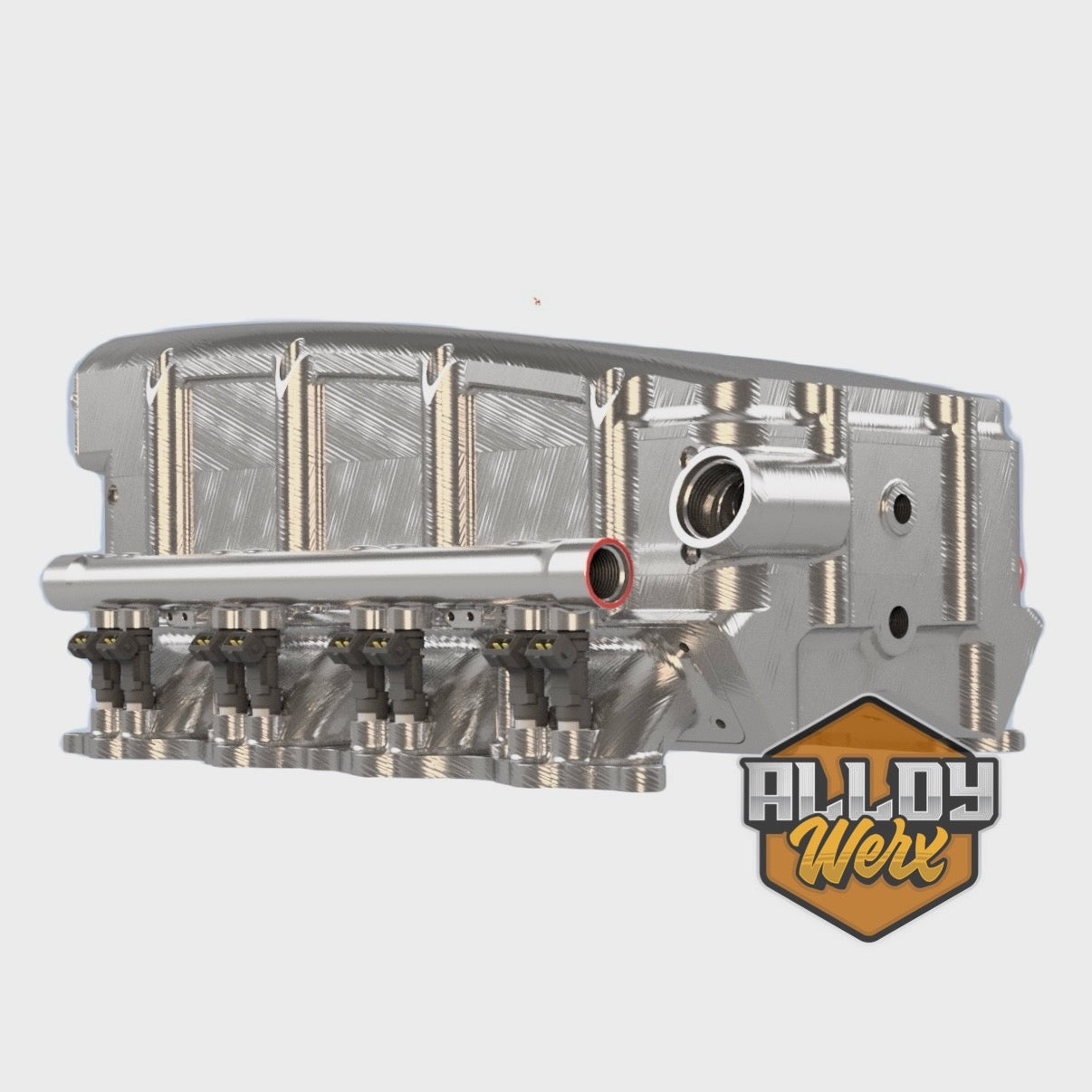

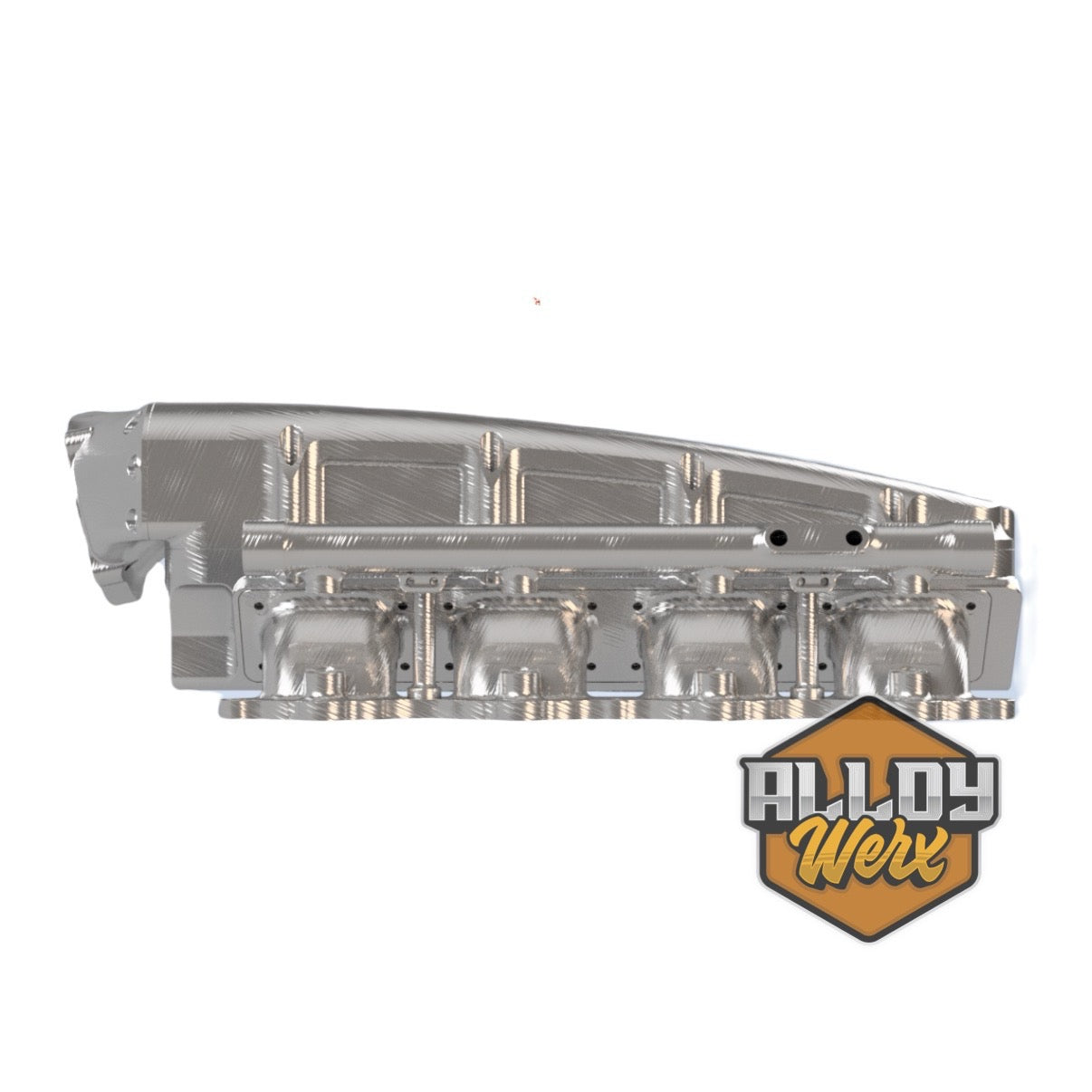

AlloyWerx Billet Intake Manifold – Gen 1/2/3 Coyote (Modular Configuration)

Designed from OEM CAD data for perfect fitment and built with a performance-first mindset, the AlloyWerx billet intake manifold is the ultimate upgrade for serious Coyote builds. Whether you're naturally aspirated, boosted, or twin-injected, this modular intake adapts to your power goals.

✅ Key Features:

• Modular Core Design: Available with or without our proprietary air-to-water intercooler core (rated for 2200+ HP)

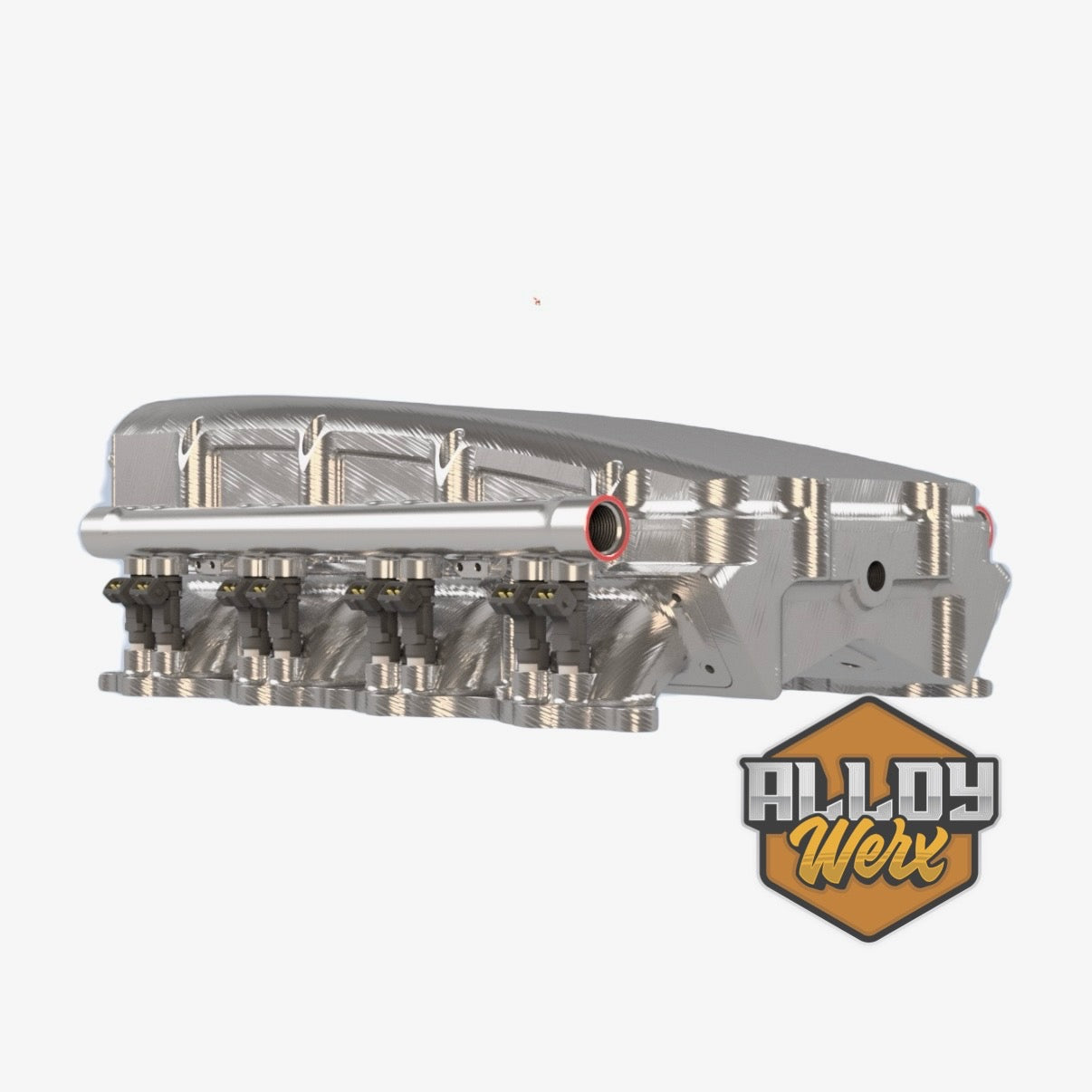

• Injector Options: Choose between single or dual injector per cylinder configurations

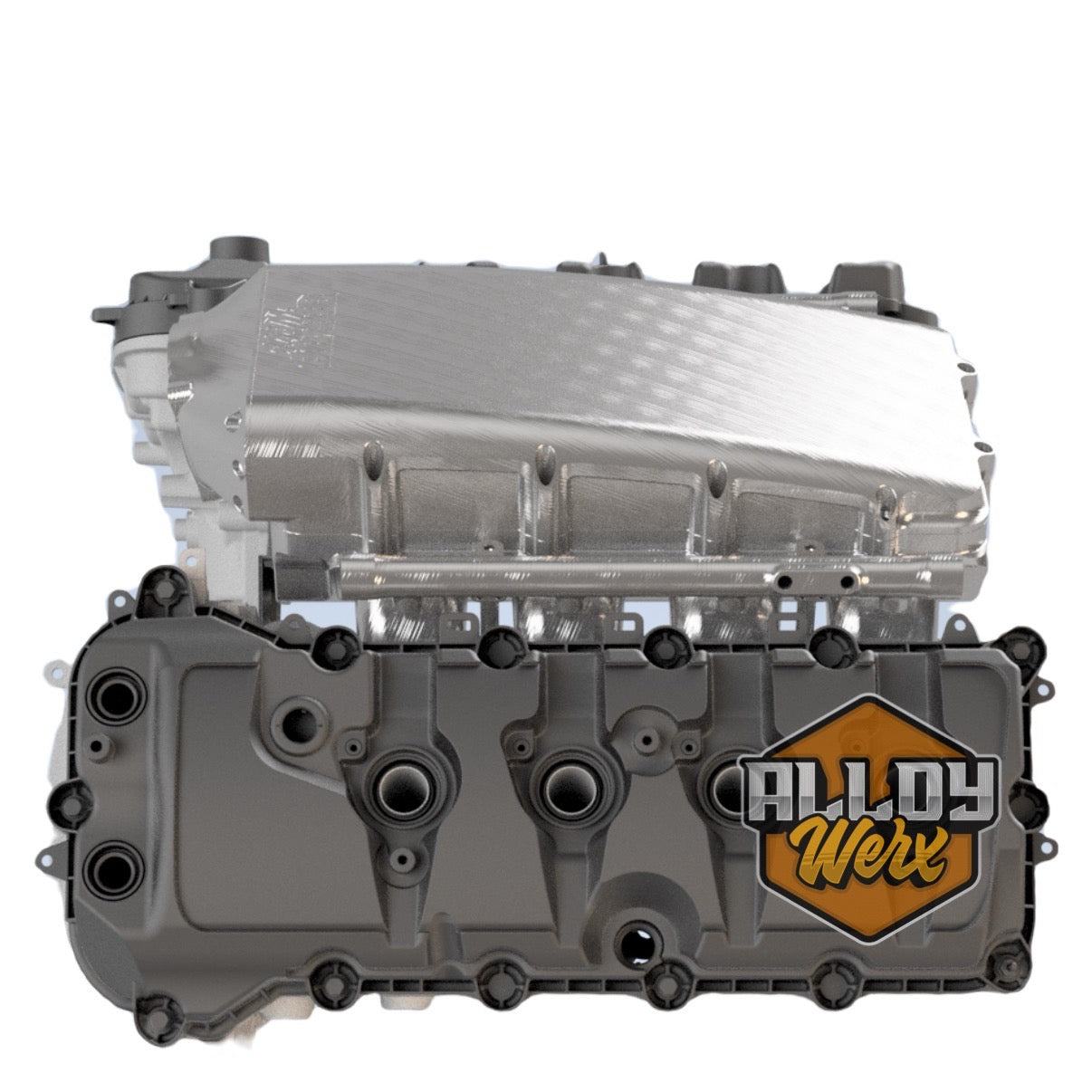

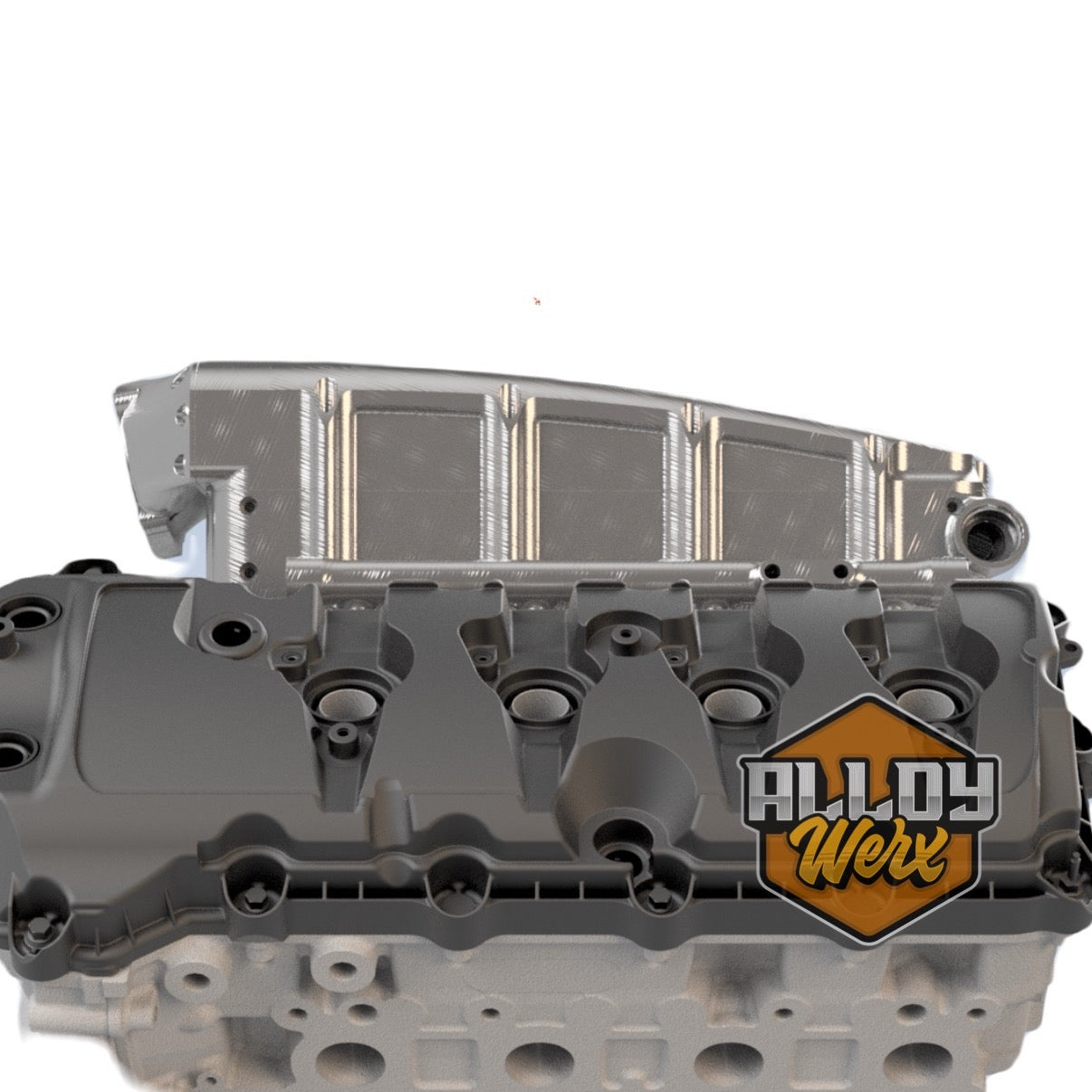

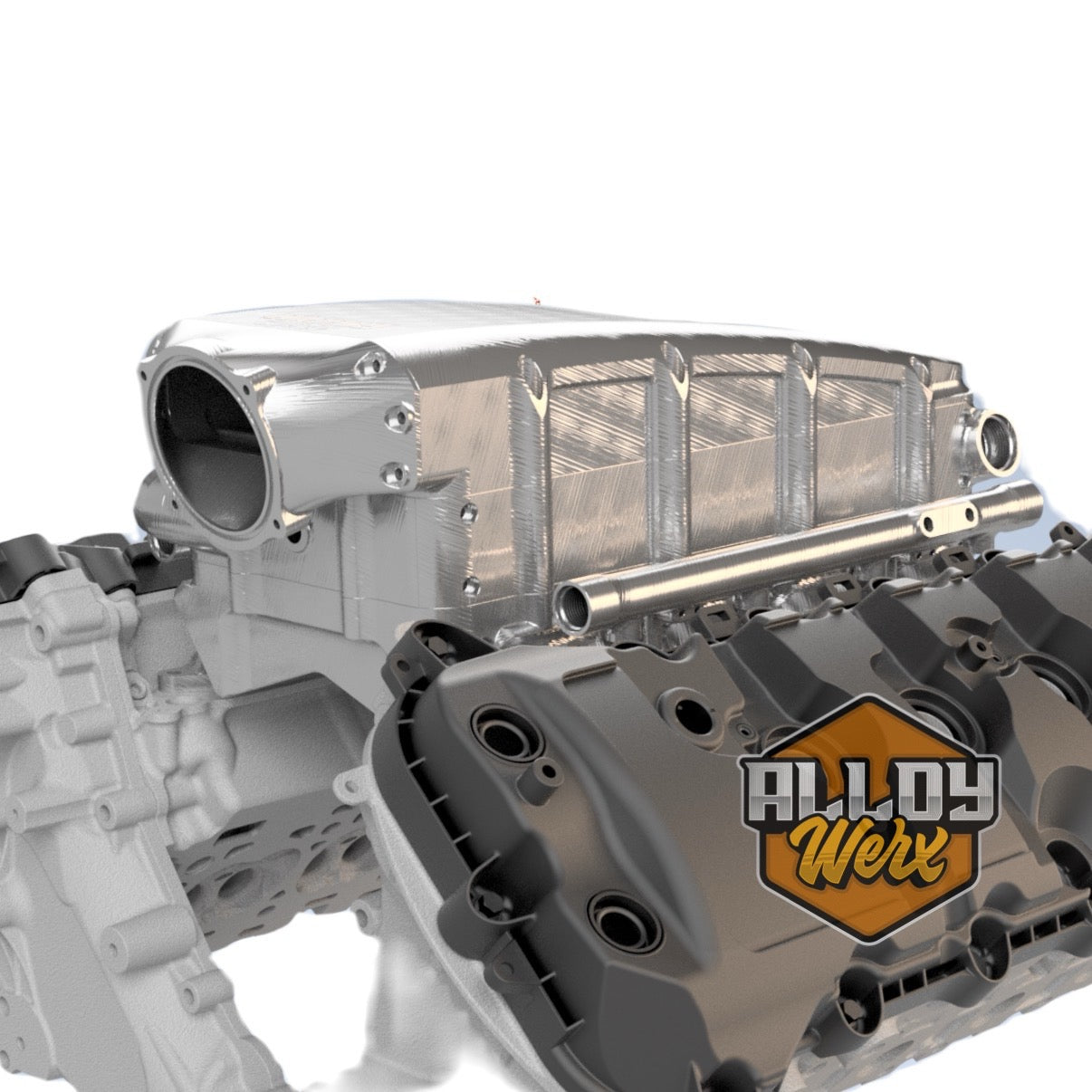

• Fits all Gen 1, 2, and 3 Coyote engines (2011–2024 Mustang GT & F-150)
• Optimized runner geometry and plenum design for improved airflow and throttle response
• Accepts factory throttle bodies

• Designed using OEM CAD data for perfect fitment and optimized runner approach

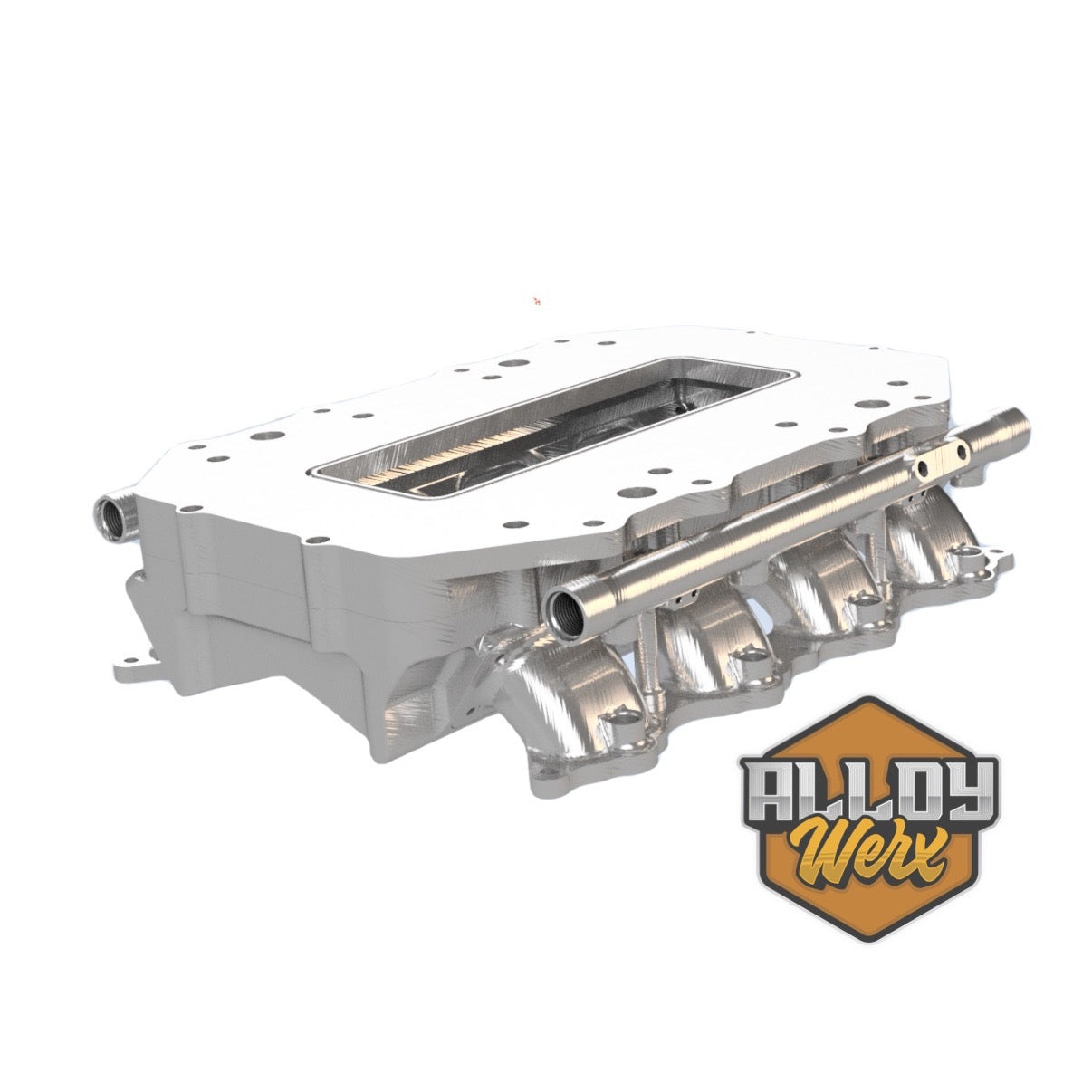

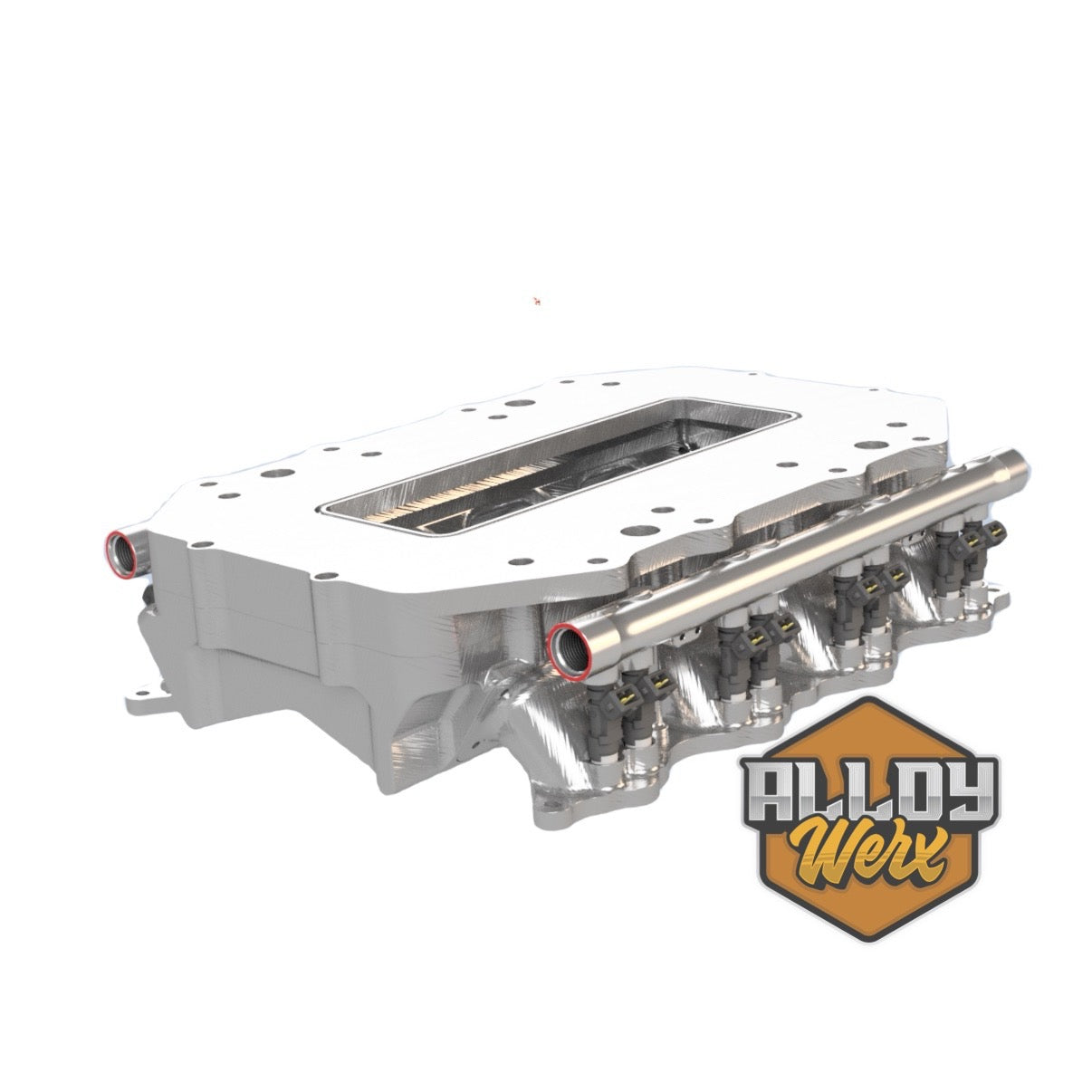

• Blower Configuration: Configurable to mount a 6-71, 8-71, or 10-71 screw-type supercharger (can be used with or without inner cooler core)

🔧 Performance Specs:

• CNC-machined from solid T6-6061 billet aluminum
• Includes high-flow -10AN fuel rails with ORB ports on both ends

• Dual 1/8" NPT boost reference ports + 1/2" NPT brake booster port
• Integrated Factory T-Map sensor port
• Dual -16ORB water cooling ports (for intercooler configuration)
• O-ring sealed, bolt-together design for a leak-free, serviceable assembly
• Complete hardware kit with stainless fasteners included

🛡️ Limited Lifetime Warranty – Covers all components against manufacturing defects and leaks.
